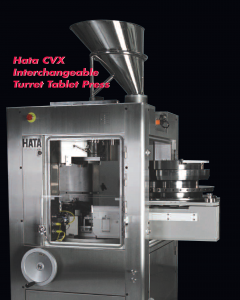

The HATA CVX Interchangeable Tablet Press Series gives you all of the features you need from the small batch, single-sided press, or the bi-layer tablet press to the large double-sided tablet production press. Elizabeth Hata’s patented 2-stage closed feeding system and our state of the art software control system is standard on all HATA presses.
The CVX Tablet Press Series features a quick-change-over from one tablet press product to another with an easy-clean design for manual wash downs. Our easy access engineering provides for quick parts removal and high visibility into the compression zone. Our portable, user-friendly tablet press kiosk provides efficient machine management. The CVX Tablet Press operates up to 100 RPM.
ADDITIONAL TABLET PRESS FEATURES
Closed 2-Stage Tablet Press Feeding System
HATA’s patented closed 2-stage powder compression feeding system virtually eliminates tablet weight variation. Granulation is drawn from the primary material hopper into the HATA supply hopper, then to the “closed” circulating feed shoe in two stages. Our patented tablet feeding system allows the computer to monitor and control the rate at which the powder is being fed into both the supply hopper and the feed shoe. This ensures a consistent flow of granulation with minimal density variation.
A portable, user-friendly tablet press kiosk control provides access to the HATA CVX Windows based 21 CFR Part 11 Compliant software interface. The control system is designed and manufactured at our North Huntingdon, Pennsylvania facility and comes integrated with context sensitive help messages to make press operation simple and understandable.
Our reputation is built on reliable tablet presses and a commitment to service that is unmatched in the industry. Your continuous production is our number one concern and our technicians can be on site within 24 hours in most cases. We carry a complete line of tablet press spare parts including tablet press compression rolls in our inventory. Our installation, training and validation support will ensure proper use and maintenance of your HATA Tablet Press.
TABLET PRESS ACCESSORIES
Reduce downtime and increase your production capabilities by utilizing the extra turret and cams with tooling installed.
The turret stand can be used as a turret cleaning cart and as a turret work station to install the tooling.
The turret carriage is used to remove the interchangeable turret from the HATA Press.
TURRET AND COMPRESSION PARTS REMOVAL FOR QUICK CHANGE-OVERS
The HATA CVX Series provides easy access for maintenance, compression turret and parts removal, and complete manual wash-in-place cleaning. Our easy-clean tablet press design features locking pins and thumb screws for a quick and easy, no tool disassembly.
The Elizabeth Companies understand all aspects of the tableting process because we have dedicated ourselves to providing world-class quality tooling and machinery to the Pharmaceutical industry for more than 50 years. We have strived to achieve an unequaled level of customer service, satisfaction, communication and trust with our customers. Our advanced tablet press technology is the result of identifying our customers needs and creating cost-effective solutions.
The Elizabeth Companies understand all aspects of the tableting process because we have dedicated ourselves to providing world-class quality punch and die tooling and machinery to the Pharmaceutical industry for more than 50 years. We have strived to achieve an unequaled level of customer service, satisfaction, communication and trust with our customers. Our advanced compression tooling technology is the result of identifying our customers’ needs and creating cost-effective solutions.
