Accurately measure and monitor tip deflection to prevent tooling failure and maintain strict tablet specifications.

Home / Products / Accessories / Punch Tip Deflection Kit

Accessories

Punch Tip Deflection Kit

Genuine Elizabeth Precision. Zero Compromise.

In pharmaceutical and nutraceutical compression, your tooling alignment is critical. A single bent punch tip can score a die bore, create "J-hook" burrs, and jeopardize an entire production campaign.

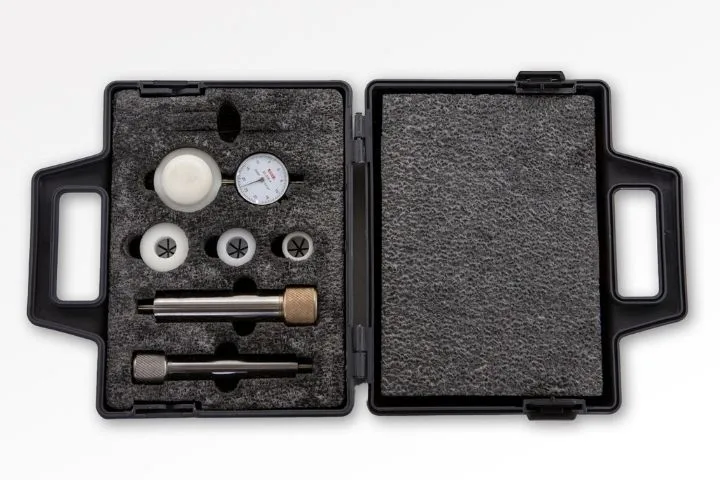

The Elizabeth Punch Tip Deflection Kit brings OEM-level accuracy into your maintenance room. Designed with a universal fixture to accommodate various punch barrel diameters, this kit provides a rapid, fail-safe method to verify that your tooling is straight, true, and ready for the press.

View FAQs The Risks of Deflection

Deflection is often invisible to the naked eye.

Bent tips scrape and score expensive die walls.
Off-center compression causes capping and flashing.
Leads to J-hook burrs and failed batches.

Prevent Costly Damage

Detect run-out (wobble) to stop issues before they start.

Stop Die Wear: Ensure tips align perfectly.
Improve Consistency: Maintain centered compression force.
Validate Repairs: Essential for checking punches after polishing or tip repair.

Why Choose Elizabeth

Invest in accuracy and durability.

OEM Quality: Engineered for all tablet presses.
User-Friendly: Fast setup without complex calibration.
Shop Floor Durability: Withstands daily use while maintaining lab-grade accuracy.

Equip Your Production with the Best

Don't trust your expensive tablet press tooling to generic tools. Fill out the form below to speak with an expert about the Punch Tip Deflection Kit.

Deflection Kit FAQs

Why is checking for tip deflection important?

A bent tip acts like a cutting tool against your die wall. Measuring deflection prevents the punch from scraping the die, which saves you money on replacement dies and prevents "J-hook" burrs from forming.

How often should I check my tooling?

We recommend checking your punches during every major tool inspection cycle, immediately after any polishing or tip repair, or if a punch has been dropped or mishandled on the shop floor.

Is the kit difficult to use?

What is the acceptable tolerance for deflection?

Acceptable tolerances vary depending on tablet size, shape, and specific tooling standards (TSM or EU). Consult your press manual or speak directly with our Elizabeth tooling experts for your exact required measurements.
