Heavy-Duty Durability
Engineered to handle elevated compression forces without deformation or structural fatigue.
Premium Tablet Compression Tooling
Industrial Applications
Engineered for durability, strength, and consistent performance. Built to withstand higher compression forces and abrasive materials common in industrial tablet production.
MaterialsPremium Steels & Carbides
CoatingsAdvanced Solutions
DesignsMulti-Tip & Custom
The Standard for Industrial Performance

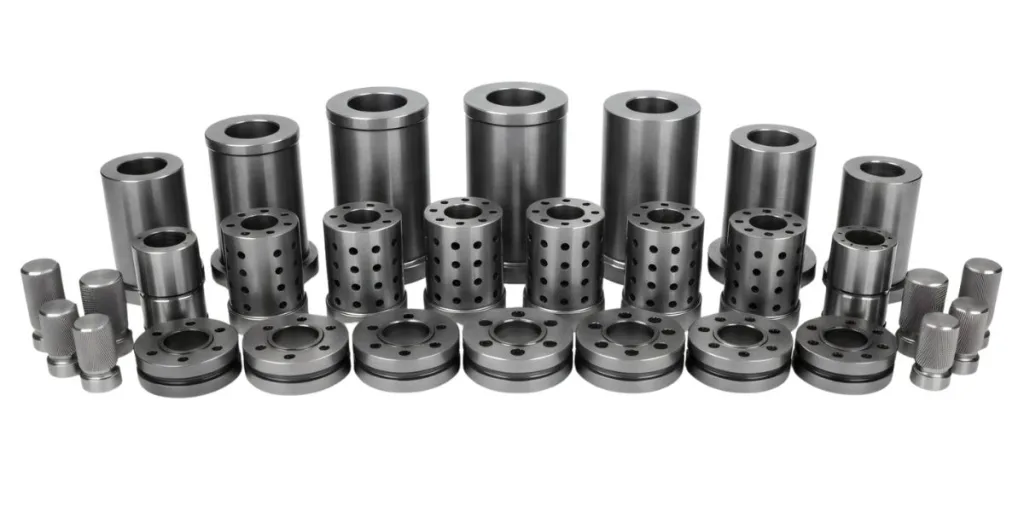

Elizabeth has manufactured compression tooling since 1954. Our industrial tooling is engineered to withstand high compression forces, abrasive materials, and continuous-duty production.
Designed for demanding environments, each tool maintains structural integrity and dimensional stability under load to support consistent tablet formation and extended service life.
- Decades of Experience: Supporting industrial compression applications since 1954.
- Heavy-Duty Materials: Hardened tool steels, carbides, and specialty alloys for abrasive products.
- Wear-Focused Engineering: Built to resist deformation and premature wear.
- Global Technical Support: Manufacturing and service centers worldwide.
Engineered for Performance
Designed to withstand high compression forces, abrasive materials, and continuous production environments.
Abrasion Resistance
Manufactured from wear-resistant materials to withstand aggressive powders and extended production cycles.
Large Tablet Capability
Designed to support oversized and high-density tablets common in industrial applications.
Custom Industrial Geometry
Manufactured for non-round, scored, and specialty tablet shapes requiring reinforced edge strength.
Materials & Coatings
Industrial applications often involve abrasive powders, high-density materials, and elevated compression forces. Proper material selection and surface protection are critical to extending tooling life and maintaining structural integrity under load.
Punch Material Options
- S7 Tool Steel: Shock-resistant grade providing strength and toughness under high compression loads.
- S7 ESR: Refined structure for improved durability and resistance to fatigue.
- D2 Tool Steel: High carbon, high chromium tool steel offering strong wear resistance.
- A2 Tool Steel: Balanced wear resistance and toughness for demanding applications.
- D3 Tool Steel: Increased abrasion resistance for severe wear environments.
- 440C Stainless Steel: Corrosion-resistant option for reactive or moisture-sensitive materials.
- Carbide Components: Recommended for extreme abrasion and extended production cycles.
Tooling Coating Options
Surface treatments help reduce friction, protect against abrasive wear, and extend punch life in demanding industrial environments.
- Hard Chrome: General-purpose coating that improves wear resistance and provides corrosion protection.
- Chromium Nitride (CrN): Offers enhanced surface hardness with anti-stick performance for abrasive materials.
- Titanium Nitride (TiN): High hardness coating designed for severe wear conditions.
- Diamond-Like Coating (DLC): Wear-resistant coating that reduces friction and supports extended service life in high-load applications.
- IBED (Ion Beam Enhanced Deposition): Advanced coating that improves wear and corrosion resistance, with certain coatings adding lubricity to reduce friction and extend tool life in demanding applications.
Tooling Options & Customization
Configure industrial tooling to match compression force requirements, tablet size, and material characteristics.
Technical Specifications
We manufacture tooling to all major global standards, supporting a wide range of tablet sizes.
| Standard Type | Common Sizes Available | Typical Application |
|---|---|---|
| TSM Standard (US) | B, BB, D | High-speed rotary presses in North & South America. |
| EU Standard (Metric) | B, BB, D | High-speed rotary presses globally (Europe/Asia). |
| Specialty / Other | RTP, TDP, Core Rod, Multi-Tip | R&D, single-station presses, and specialized high-volume production. |
Shapes & Geometries
From standard rounds to complex custom shapes, we manufacture precisely what you need.
RoundCapsuleOvalSquare / Rect.TriangleHexagonCustom...
Tablet Face Profiles
Select the ideal profile for tablet coating, friability, and aesthetic requirements.
Standard ConcaveDeep ConcaveFlat Face PlainFlat Face BevelCompound CupModified BallShallow Concave
Facing a tough tableting challenge?
Contact our tooling experts to discuss material selection, coating options, or custom designs for your formulation.
Contact engineering
Industrial Applications FAQs
What is industrial tablet compression tooling?
Industrial tablet compression tooling is designed for non-pharmaceutical tablet production applications, including chemical, cleaning, agricultural, and industrial products. These tooling systems are engineered to handle abrasive materials, high compression forces, and demanding production environments.
What industries use industrial tablet tooling?
Industrial tooling is commonly used in: Chemical manufacturing Water treatment tablet production Cleaning and detergent applications Agricultural products Catalysts and industrial compounds These applications often require durable tooling designed for high wear conditions.
How is industrial tooling different from pharmaceutical tooling?
Industrial tooling is typically designed to withstand more abrasive materials and higher compression forces. These applications often prioritize durability, wear resistance, and long production runs over pharmaceutical-specific requirements.
What materials are used in industrial compression tooling?
Industrial tooling is commonly manufactured from hardened tool steels and may include specialized coatings or carbide-lined components to improve wear resistance and extend tooling life in abrasive applications.
Why is wear resistance important in industrial tablet tooling?
Industrial formulations can cause excessive abrasion and premature tooling wear. Wear-resistant tooling helps maintain tablet consistency, reduce downtime, and extend service life during continuous production.
Can industrial tooling be customized for specific applications?
Yes. Industrial tooling can be customized for: Unique tablet shapes and sizes High-tonnage applications Abrasive formulations Specialty industrial products Custom tooling helps optimize performance for specific manufacturing requirements.
What challenges are common in industrial tablet compression?
Common challenges include: Excessive tooling wear Material abrasion High compression loads Tablet chipping or breakage Inconsistent powder flow Proper tooling design and material selection help improve production reliability.
How does industrial tooling support high-volume production?
Precision-engineered industrial tooling helps maintain alignment, withstand heavy loads, and reduce premature wear. This supports consistent tablet production and longer operating cycles in demanding manufacturing environments.
