55-Station Double-Sided Rotary Configuration
Supports sustained high-output production within a pharmaceutical manufacturing environment.
Double-Sided Rotary

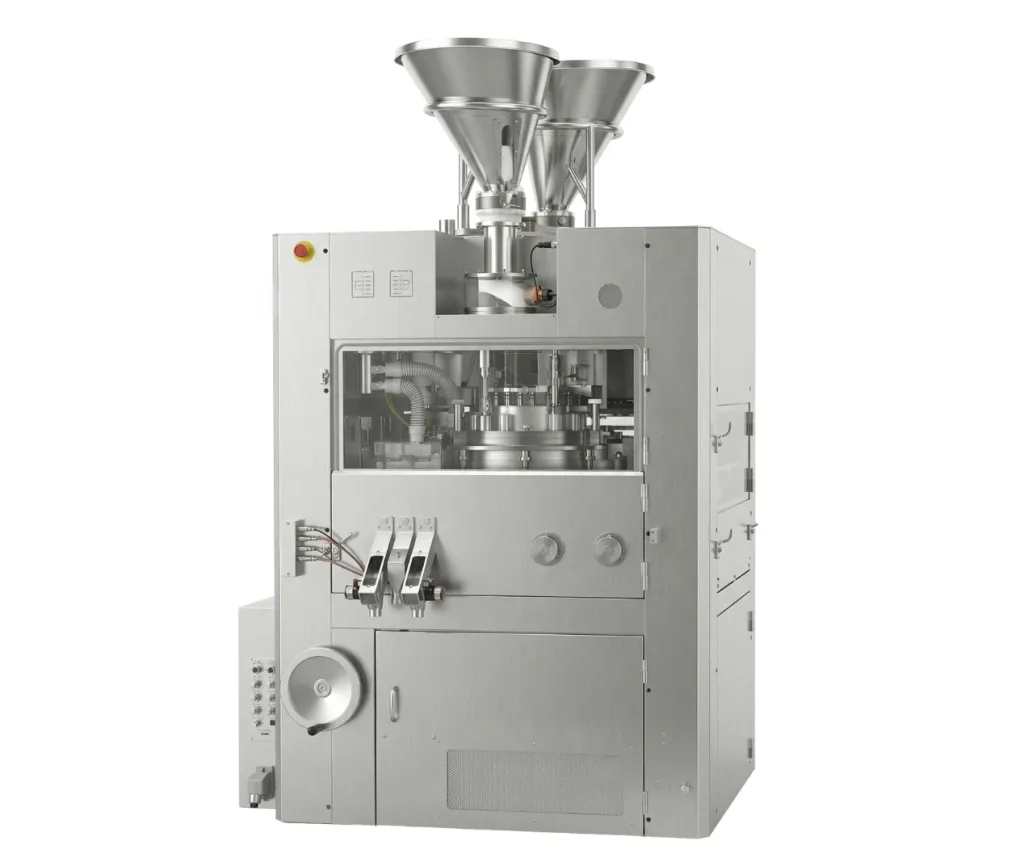

HT-CVX55-LDU
The HT-CVX55-LDU is a double-sided rotary tablet press within the HATA CVX Series, built for high-output production in pharmaceutical manufacturing environments. Designed for larger-scale operations, the 55-station configuration delivers substantial throughput while maintaining controlled compression performance.
484,000/hrMax Output
55Stations
80 kNMain Pressure
Operating with B tooling across 55 stations, the HT-CVX55-LDU delivers production rates up to 484,000 tablets per hour, depending on turret speed and formulation characteristics. With a maximum compression force of 80 kN and continuous operating force of 60 kN, it supports consistent tablet density and structural integrity at higher speeds.
Equipped with HATA’s patented closed two-stage feeding system and quick-change turret design, the HT-CVX55-LDU is built for reliable die filling, efficient changeovers, and reduced downtime in large-scale manufacturing environments.
Advanced Bi-Layer Compression
The HT-CVX55-LDU is designed for manufacturers requiring sustained, high-output production in pharmaceutical tablet manufacturing. As a 55-station double-sided rotary press within the HATA CVX Interchangeable Turret Series, it provides the throughput and compression control needed for continuous, large-scale operations.
Operating with B tooling across 55 stations, the HT-CVX55-LDU achieves production rates up to 484,000 tablets per hour, depending on turret speed and product characteristics. A maximum compression force of 80 kN and continuous operating force of 60 kN support consistent consolidation across a wide range of tablet sizes and formulations. The press incorporates HATA’s patented closed two-stage feeding system, engineered to reduce weight variation and promote uniform die filling at elevated speeds. A large pitch circle diameter and high-torque drive system provide stability under load, helping maintain compression consistency during long production runs. Designed for flexibility and operational efficiency, the HT-CVX55-LDU includes interchangeable turret capability for faster changeovers and a full manual washdown design for improved accessibility during cleaning. For manufacturers seeking high-speed output with controlled compression performance, the HT-CVX55-LDU delivers scalable production within a robust double-sided platform.
Main Features and Benefits
Output Up to 484,000 Tablets per Hour
Delivers large-scale production capacity depending on turret speed and formulation characteristics.
80 kN Maximum Compression Force (60 kN Continuous)
Provides stable compression performance across a range of tablet sizes and densities.
Patented Closed Two-Stage Feeding System
Reduces tablet weight variation and supports uniform die filling at elevated speeds.
Large Pitch Circle Diameter (820 mm)
Enhances mechanical stability and compression consistency during high-speed operation.
Interchangeable Turret Capability
Enables faster product changeovers and tooling flexibility within the CVX platform.
Manual Washdown Design
Allows for accessible cleaning and maintenance to support regulated manufacturing environments.
High-Torque Drive System
Maintains controlled compression under continuous production loads.
Pharmaceutical-Grade Construction
Designed for durability and consistent performance in demanding production settings.
Technical Specifications
| Mechanical Specifications | |
|---|---|
| Model | HT-CVX55-LDU |
| Tablet Press Type | Double-Sided Rotary |
| Number of Stations | 55 (B Tooling) |
| Operational Speed | 15 – 60 RPM |
| Maximum Mechanical Speed | 75 RPM |
| Maximum Compression Force | 80 kN |
| Continuous Operating Force | 60 kN |
| Pitch Circle Diameter | 820 mm |
| Press Weight | 6,800 kg (14,991 lbs.) |
| Press Dimensions (W x D x H) | 1,650 mm x 1,600 mm x 2,200 mm |
*Rated outputs may vary depending on product characteristics, tablet size, depth of fill, and operating conditions.
Ready for High-Output Manufacturing?
If your facility requires sustained, high-speed tablet production with consistent compression performance, the HT-CVX55-LDU delivers the capacity and stability needed for continuous operation. Its 55-station double-sided configuration and controlled feeding system are built to maintain uniform tablet weight at elevated production rates. Whether you are expanding capacity or upgrading to a higher-output platform, the HT-CVX55-LDU provides scalable performance within a robust production framework. Contact Elizabeth to review your tooling requirements, output targets, and facility specifications. Our team will help determine if the HT-CVX55-LDU is the right solution for your manufacturing environment.
