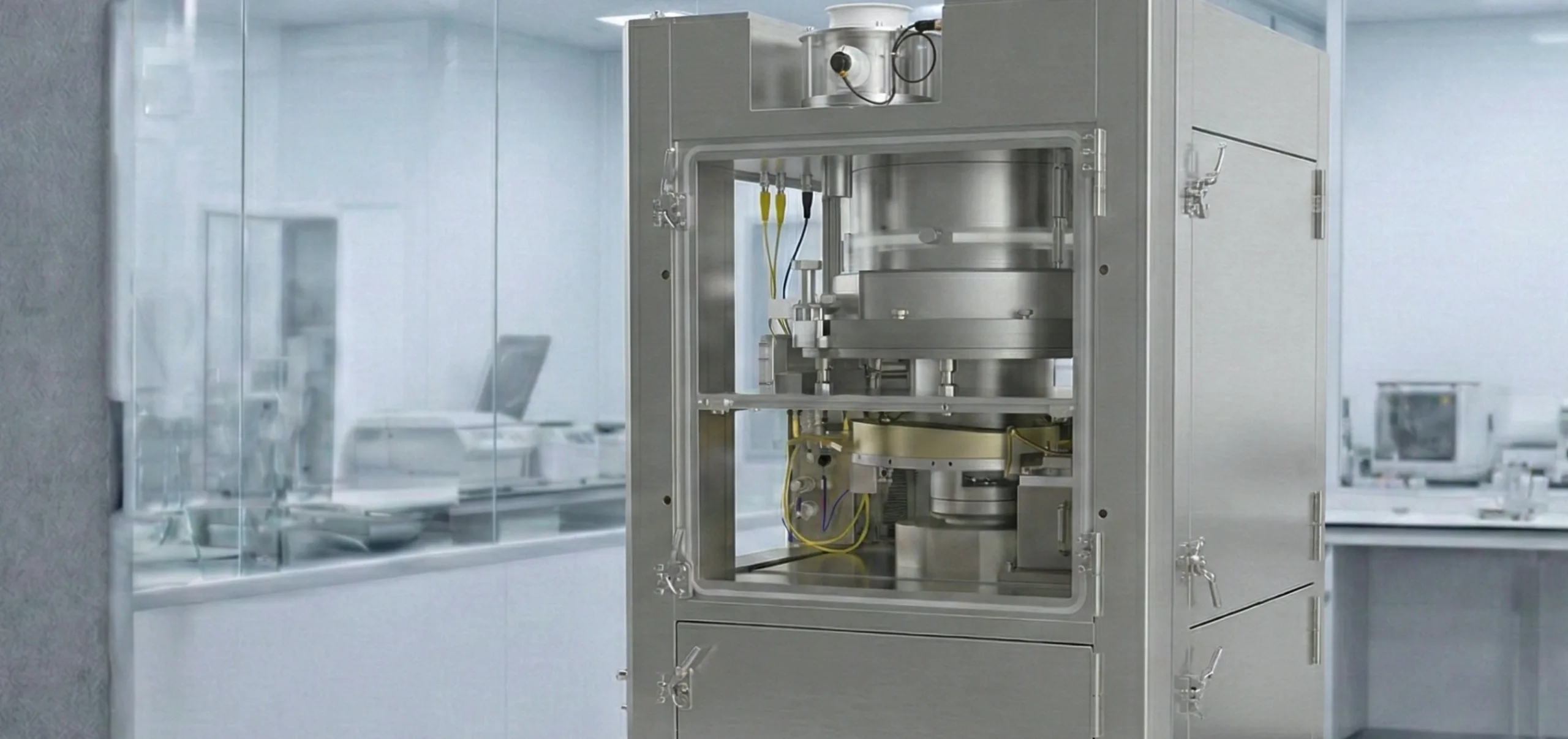

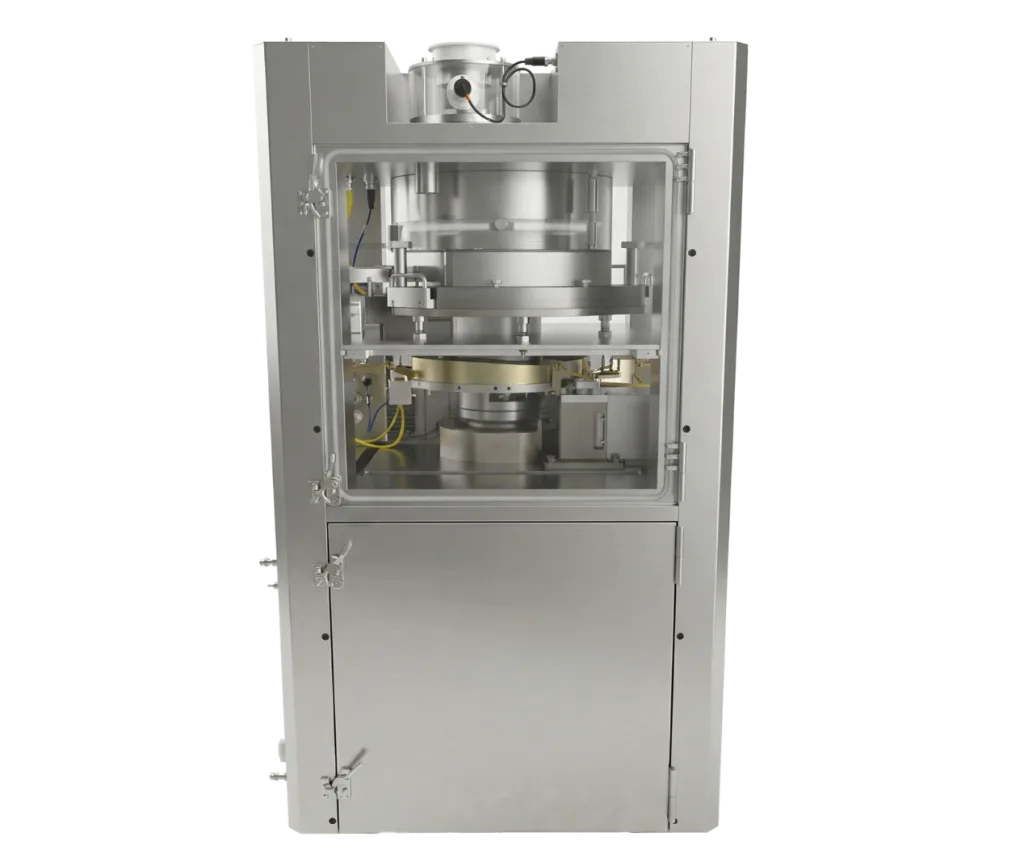

HT-CVX-MSU

Advanced Bi-Layer Compression

The HT-CVX-MSU is designed for manufacturers who require high-speed production within a single-sided rotary configuration. As part of the HATA CVX Interchangeable Turret Series, the MSU model provides scalable output, flexible tooling configurations, and simplified cleaning in a compact production platform. With turret options of 32 D, 38 B, or 45 BB stations, the HT-CVX-MSU delivers output up to 270,000 tablets per hour depending on tooling and operating speed. A maximum compression force of 80 kN and continuous operating force of 60 kN allow stable compression across a wide range of pharmaceutical tablet sizes and formulations. The press features HATA’s patented closed two-stage feeding system, engineered to reduce weight variation and support consistent die filling. A large pitch circle diameter and robust drive system maintain stability at operating speeds between 15 and 60 RPM. Designed for efficiency in regulated manufacturing environments, the HT-CVX-MSU includes interchangeable turret capability for faster changeovers and full manual washdown design for cleaning access. The portable kiosk control interface allows centralized operation while keeping mechanical and compression zones organized and accessible. For manufacturers seeking flexible, high-speed output in a single-sided rotary press, the HT-CVX-MSU delivers controlled performance with simplified maintenance and turret interchangeability.
