Double-Sided High-Speed Rotary Configuration
Increases production capacity by compressing tablets on both sides of the turret for maximum throughput.

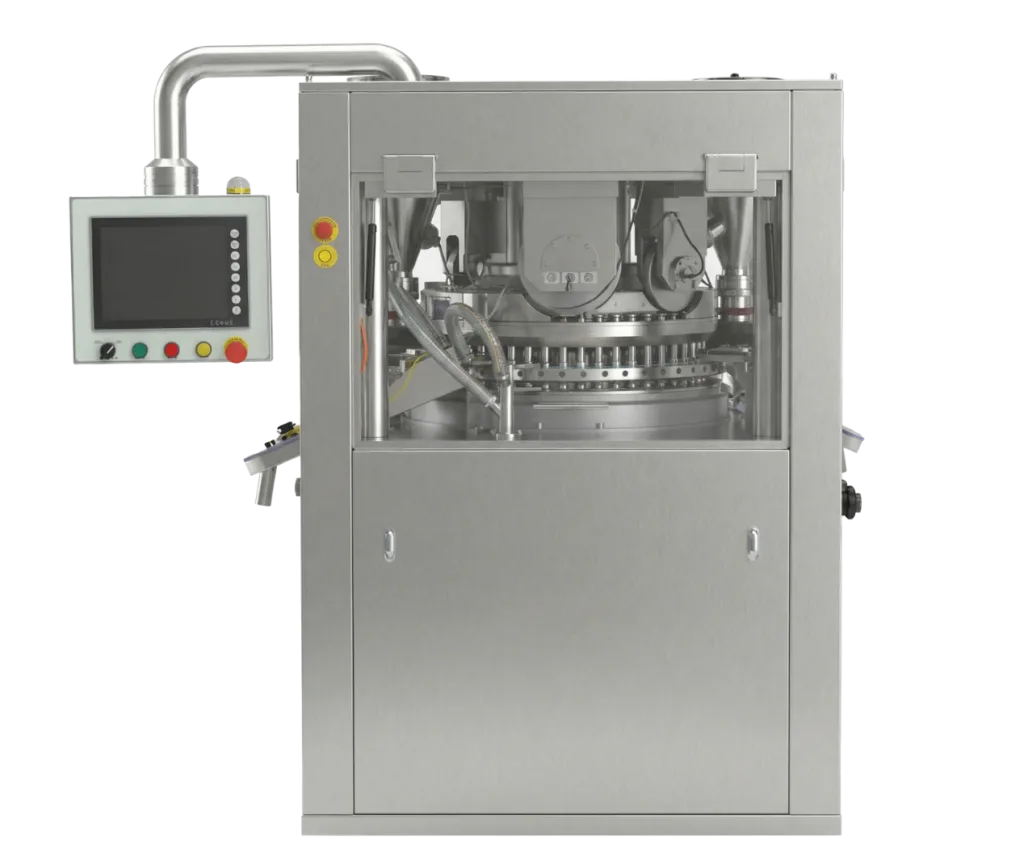

DOUBLE-SIDED ROTARY TABLET PRESS
ECO VII
The Elizabeth ECO VII is a double-sided rotary high-speed tablet press engineered for large-volume production and advanced compression control. Designed with pre-compression capability and high station counts up to 75, the ECO VII delivers substantial throughput for pharmaceutical, nutraceutical, and high-demand industrial applications.
>306,000/hrMax Output
51, 61, or 75Stations
6.5 TonMain Pressure
With maximum output reaching up to 450,000 tablets per hour depending on tooling configuration, the ECO VII supports EURO and IPT tooling formats in D, B, and BB configurations. Its larger compression rollers increase dwell time, improving tablet integrity and consistency at higher speeds.
Equipped with a PLC-controlled touch screen HMI, three-stage paddle force feeder, hydraulic overload protection system, and fully enclosed drive compartment, the ECO VII is built for controlled, high-capacity production in demanding manufacturing environments.
Scalable Output & Control
The Elizabeth ECO VII is built for manufacturers who require high-speed, large-volume tablet production with enhanced compression control. As a double-sided rotary tablet press with pre-compression capability, it is designed to support demanding pharmaceutical, nutraceutical, and industrial applications where output, consistency, and durability are critical.
With up to 75 stations depending on tooling configuration and maximum output reaching 450,000 tablets per hour, the ECO VII delivers substantial production capacity within a solid cast frame construction. The larger main compression rollers increase dwell time, supporting improved tablet hardness and structural integrity at higher operating speeds. Pre-compression capability further enhances tablet quality by reducing air entrapment and improving consolidation before final compression.
The ECO VII integrates a PLC-based control system with a touch screen HMI that allows operators to monitor and adjust turret speed, feeder speed, compression parameters, and lubrication intervals. Linear position sensors display pre-compression, main compression, and fill depth settings directly on the HMI, providing real-time process visibility.
Designed for reliability in continuous production environments, the ECO VII features a three-stage paddle force feeder for uniform die filling, an auto hydraulic compression overload system for tooling protection, internal helical turret drive with high-torque reduction gearbox, and a centralized automatic lubrication system. Together, these systems provide controlled, high-output performance for facilities operating at scale.
Main Features and Benefits
Pre-Compression and Main Compression Stations
Improves tablet density and reduces air entrapment before final compression for better structural integrity.
Up to 75 Stations
Supports high-output production across D, B, and BB tooling configurations.
Maximum Output up to 450,000 Tablets per Hour
Enables large-volume manufacturing for pharmaceutical, nutraceutical, and industrial operations.
Larger Main Compression Rollers
Extends dwell time to enhance tablet hardness and compression consistency at higher speeds.
Three-Stage Paddle Force Feeder
Promotes uniform die filling and improved weight control, even with difficult or poor-flowing formulations.
Auto Hydraulic Compression Overload System
Protects tooling and machine components from excessive compression forces.
Internal Helical Turret Drive with High-Torque Gearbox
Delivers table power transmission and smooth operation at elevated RPMs.
PLC-Based Control System with Touch Screen HMI
Provides centralized control of turret speed, feeder speed, compression settings, lubrication intervals, and production monitoring.
Linear Position Sensors for Compression and Fill Depth
Displays real-time compression and fill depth data on the HMI for enhanced process visibility.
Centralized Automatic Lubrication System
Reduces manual maintenance and supports consistent lubrication of critical components.
Fully Enclosed Drive Compartment with Safety Interlocks
Enhances operator safety while protecting internal components from contamination.
Technical Specifications
| Mechanical Specifications | |
|---|---|
| Model | ECO VII |
| Type | Double-Sided Rotary Tablet Press |
| Number of Stations | 51 / 61 / 75 |
| Maximum Turret Speed | 50 RPM (Spec Sheet) / 60 RPM (Manual) |
| Main Compression Pressure (Max.) | 65 kN (6.5 Ton) |
| Pre-Compression Pressure (Max.) | 20 kN (2 Ton) |
| Main Compression Roller Diameter | 250 mm |
| Pre-Compression Roller Diameter | 90 mm |
| Machine Structure | Solid Casted Frame Construction |
| Machine Footprint | 1244 mm x 1244 mm |
| Machine Height (with Hopper) | 1929 mm |
| Machine Height (with HMI Arm) | 2032 mm |
| Net Weight | Approx. 5000 kg |
*Rated outputs may vary depending on product characteristics, tablet size, depth of fill, and operating conditions.
Ready for High-Volume Tablet Production?
If your operation requires large-scale output with advanced compression control, the ECO VII is built to meet that demand. With double-sided high-speed compression, pre-compression capability, hydraulic overload protection, and real-time PLC monitoring, it is designed for manufacturers operating at full production capacity. Whether you are expanding an existing facility or consolidating multiple lower-capacity presses into a single high-performance system, the ECO VII provides the throughput and control needed for consistent, high-volume manufacturing. Contact Elizabeth to review your tooling configuration, output targets, and facility requirements. Our team will help determine if the ECO VII is the right solution for your production goals.
