Precision Alignment
Designed to maintain rod alignment and consistent bore geometry under compression.

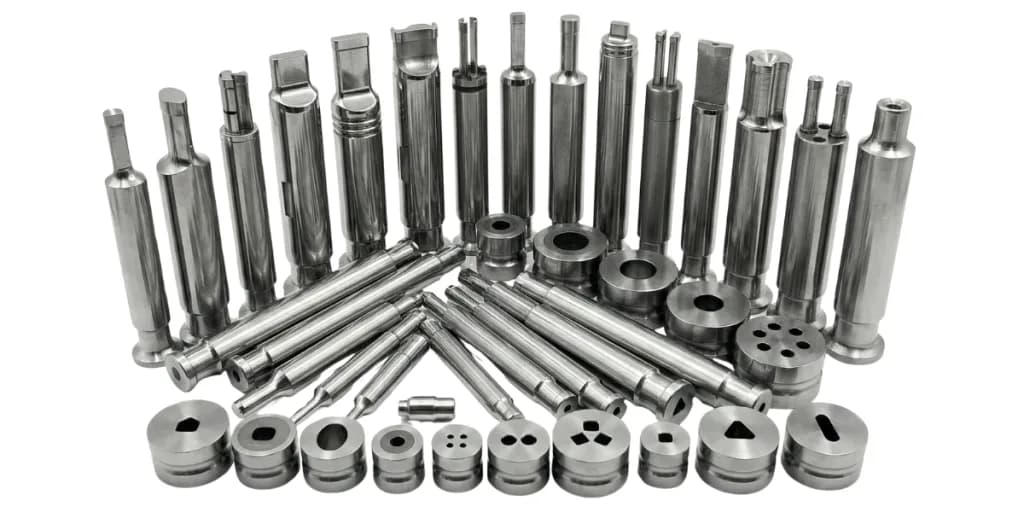

Premium Tablet Compression Tooling
Core-Rod Solutions
Engineered for accurate through-hole formation and consistent bore alignment. Designed to maintain concentricity and structural stability during compression.
MaterialsPremium Steels & Carbides
CoatingsAdvanced Solutions
DesignsMulti-Tip & Custom
The Standard for Precision
Elizabeth has engineered compression tooling since 1954. Our core-rod solutions are manufactured to strict tolerances to ensure accurate rod alignment and consistent through-hole formation.
Designed for applications requiring precise concentricity, each configuration maintains structural stability during compression to support uniform bore geometry and tablet integrity.
- Decades of Expertise: Manufacturing excellence in compression tooling since 1954.
- Precision Engineering: Tight tolerances for rod alignment and concentric bore formation.
- Durable Materials: Hardened tool steels and carbide options for extended service life.
- Global Support: Manufacturing and technical service centers worldwide.
Engineered for Performance
Designed to maintain rod alignment and consistent bore geometry under compression.
Compression Balance
Engineered to distribute force evenly around the rod to maintain tablet integrity and uniform hole formation.
Structural Stability
Built to resist deflection and maintain alignment under repeated compression cycles.

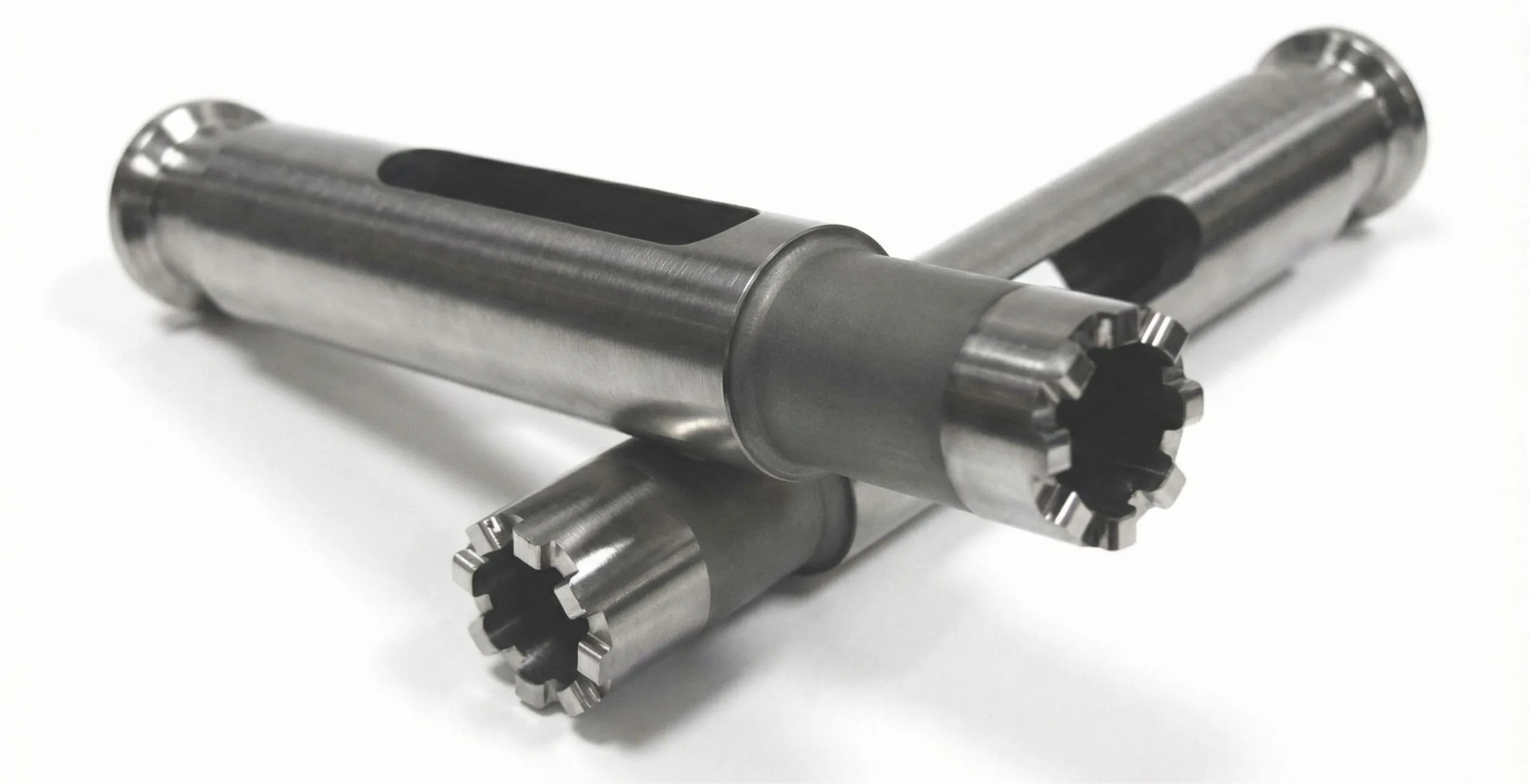

Custom Core Configurations
Available in single or multiple rod designs tailored to specific tablet dimensions and performance requirements.
Materials & Coatings
Core-rod tooling requires material strength and surface protection to maintain rod alignment and consistent bore formation during compression. Proper material selection helps prevent premature wear, deflection, and dimensional variation.
Punch Material Options
Selecting the appropriate tool steel supports structural stability and long-term performance in core-rod applications.
- S7 Tool Steel: Shock-resistant grade providing strength and durability under compression.
- S7 ESR: Refined structure for improved fatigue resistance and extended service life.
- D2 Tool Steel: High wear resistance for abrasive formulations.
- 440C Stainless Steel: Corrosion-resistant option for reactive or moisture-sensitive materials.
- Carbide Components: Recommended where increased wear resistance is required.
Tooling Coating Options
Surface treatments reduce friction, protect rod surfaces, and help maintain bore accuracy.
- Hard Chrome: General-purpose wear and corrosion protection.
- Chromium Nitride (CrN): Enhanced hardness with anti-stick performance.
- Titanium Nitride (TiN): High hardness coating for abrasive environments.
- Diamond-Like Coating (DLC): Wear-resistant surface treatment to extend tooling life.
- IBED (Ion Beam Enhanced Deposition): Advanced coating that improves wear and corrosion resistance, with certain coatings adding lubricity to reduce friction and sticking.
Tooling Options & Customization
Configure core-rod tooling to maintain concentric alignment, structural stability, and consistent bore formation.
Facing a tough tableting challenge?
Contact our tooling experts to discuss material selection, coating options, or custom designs for your formulation.
Contact engineering
Core-Rod Solutions FAQs
What is core-rod tooling?
Core-rod tooling is specialized tablet compression tooling designed to create tablets with a centered hole or internal cavity. It uses a cam-driven rod system that passes through the punch during compression to form the opening.
What applications use core-rod tooling?
Core-rod tooling is commonly used for: Ring-shaped tablets Core-in-tablet designs Multi-channel tablets Specialty pharmaceutical tablets Industrial and confectionery tablets These applications require precise concentric hole formation and structural tablet integrity.
How does core-rod tooling work?
Core-rod tooling uses a specially modified lower turret that allows a core rod to move through the center of the punch tip during compression. This creates a consistent through-hole while maintaining tablet shape and compression balance.
What are the benefits of core-rod tooling?
Core-rod tooling helps manufacturers: Produce complex tablet geometries Maintain precise bore alignment Support consistent hole formation Improve product differentiation Handle specialized compression applications Precision alignment is critical for maintaining tablet quality during production.
Why is precision important in core-rod compression tooling?
Core-rod applications require tight tolerances to maintain concentric alignment and prevent rod deflection during compression. Precision-engineered tooling helps ensure consistent bore geometry, tablet integrity, and long-term tooling performance.
